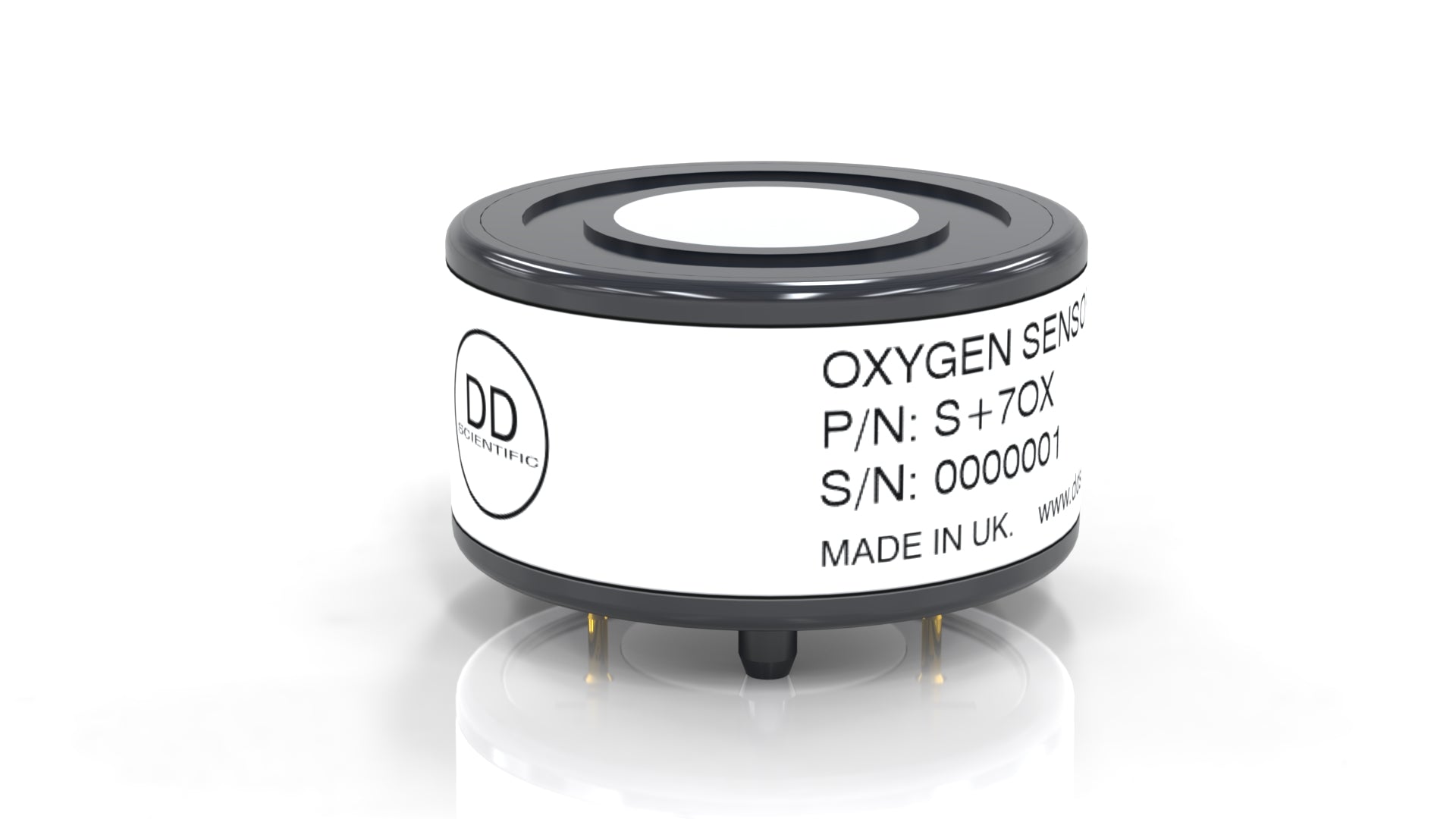

S+7OX Oxygen (O2) Sensor Industrial specification
Target Gas: Oxygen (O2)
Package: 7-Series
Range: 0 - 25% Oxygen
Output: 0.22 ± 0.03mA
T90 Response Time: < 15 seconds
Interface/Pins: Pin / 2 pin + 1 locating pins
Bias: 0V
Warranty: 24 months
Key Features:
Detailed Description:
The S+7OX is an Oxygen (O2) sensor in 7-Series format with 2 pin + 1 locating Pin interface. The S+7OX requires 0V bias. With a measurement range of 0 - 25% Oxygen and an output of 0.22 ± 0.03mA, the S+7OX has a T90 response time of < 15 seconds and a warranty period of 24 months. Key features of the S+7OX include; High stabilty, fast response & recovery and robust environmental stability.
Common Applications:
