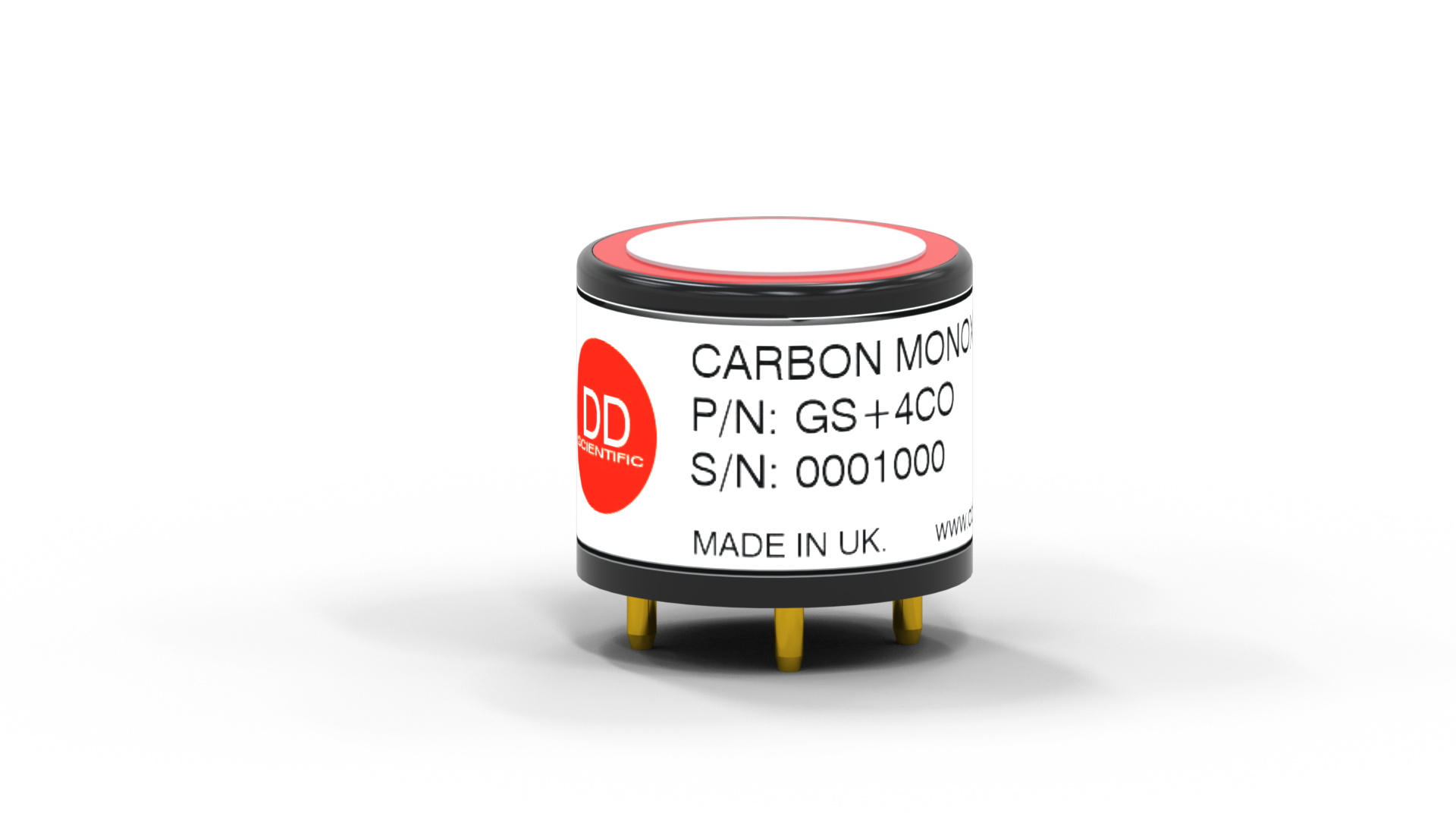

GS+A4COF Carbon Monoxide (CO) Sensor Ultra-low H2 cross-sensitivity

Target Gas: Carbon Monoxide (CO)

Package: 4-Series

Range: 0 - 2000 ppm

Output: 70 ± 20 nA / ppm

T90 Response Time: < 30 seconds

Interface/Pins: Pin / 4 pins

Bias: 0V

Warranty: 24 months

Key Features:

High stabilty, fast response & recovery, robust environmental stability, H2 compensated and independent CO & H2 measurement.

Detailed Description:

The GS+A4COF is a Carbon Monoxide (CO) sensor in 4-Series format with 4 Pin interface. The GS+A4COF requires 0V bias. With a measurement range of 0-8000 ppm and an output of 60 ± 20 nA / ppm, the GS+A4COF has a T90 response time of < 30 seconds and a warranty period of 24 months. Key features of the GS+A4COF include; High stabilty, fast response & recovery, robust environmental stability, H2 compensated and independent CO & H2 measurement.

Common Applications:

  • Industrial Safety
  • Industrial General
