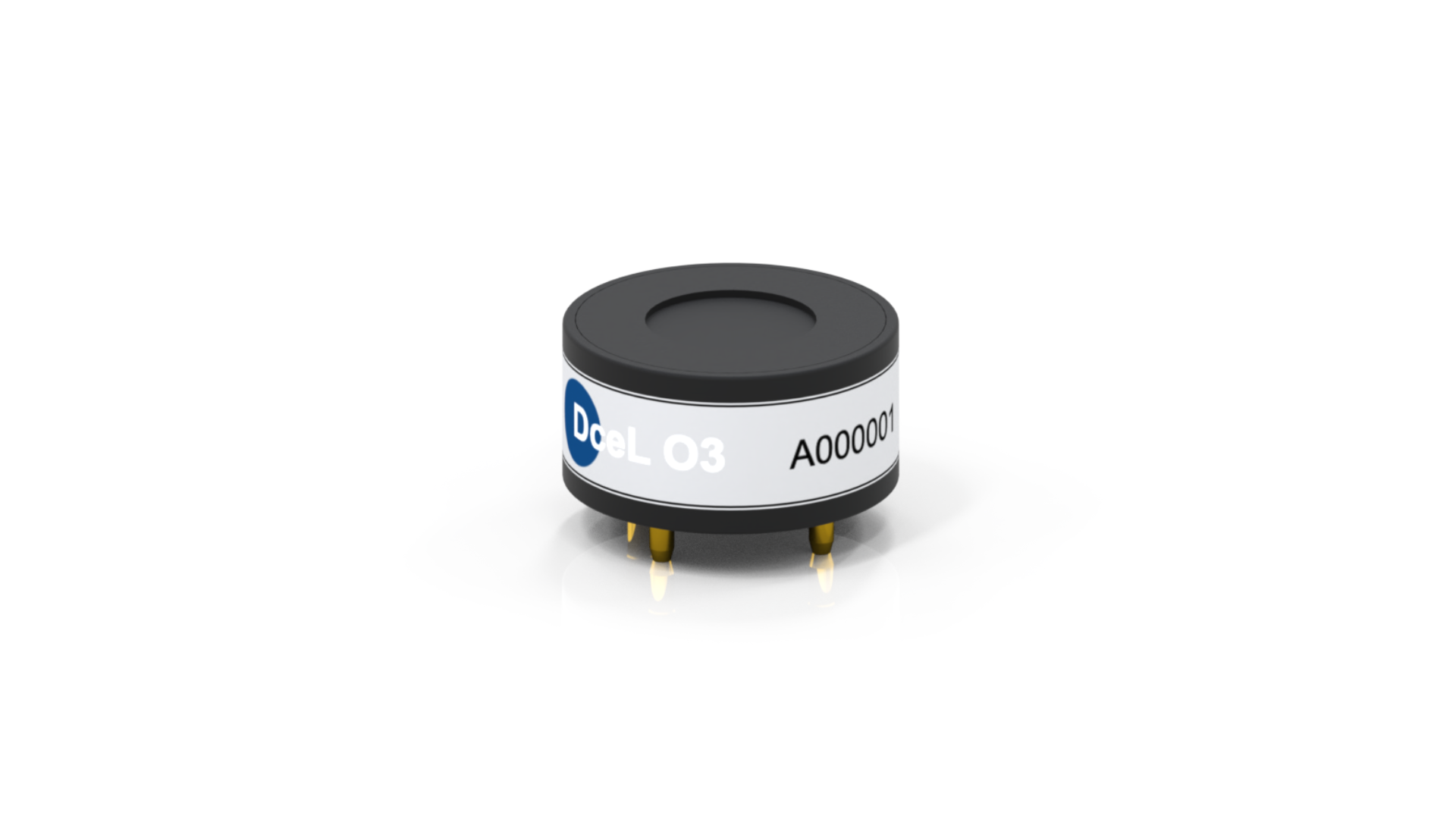

DceL O3 Ozone (O3) Sensor Low profile, interchangeable with 4-series

Target Gas: Ozone (O3)

Package: DceL

Range: 0 - 5 ppm

Output: 1600±600nA/ppm

T90 Response Time: <60secs

Interface/Pins: Pin / 3 pins

Bias: 0V

Warranty: 12 months

Key Features:

High stabilty, fast response & recovery, robust environmental stability, low RH response and low profile package interchangeable with 4-series.

Detailed Description:

The DceL O3 is an Ozone (O3) sensor in DceL format with 3 Pin interface. The DceL O3 requires 0V bias. With a measurement range of 0-5 ppm and an output of 1600±600nA/ppm, the DceL O3 has a T90 response time of <60secs and a warranty period of 12 months. Key features of the DceL O3 include; High stabilty, fast response & recovery, robust environmental stability, low RH response and low profile package interchangeable with 4-series.

Common Applications:

  • Industrial Safety
  • Industrial General
